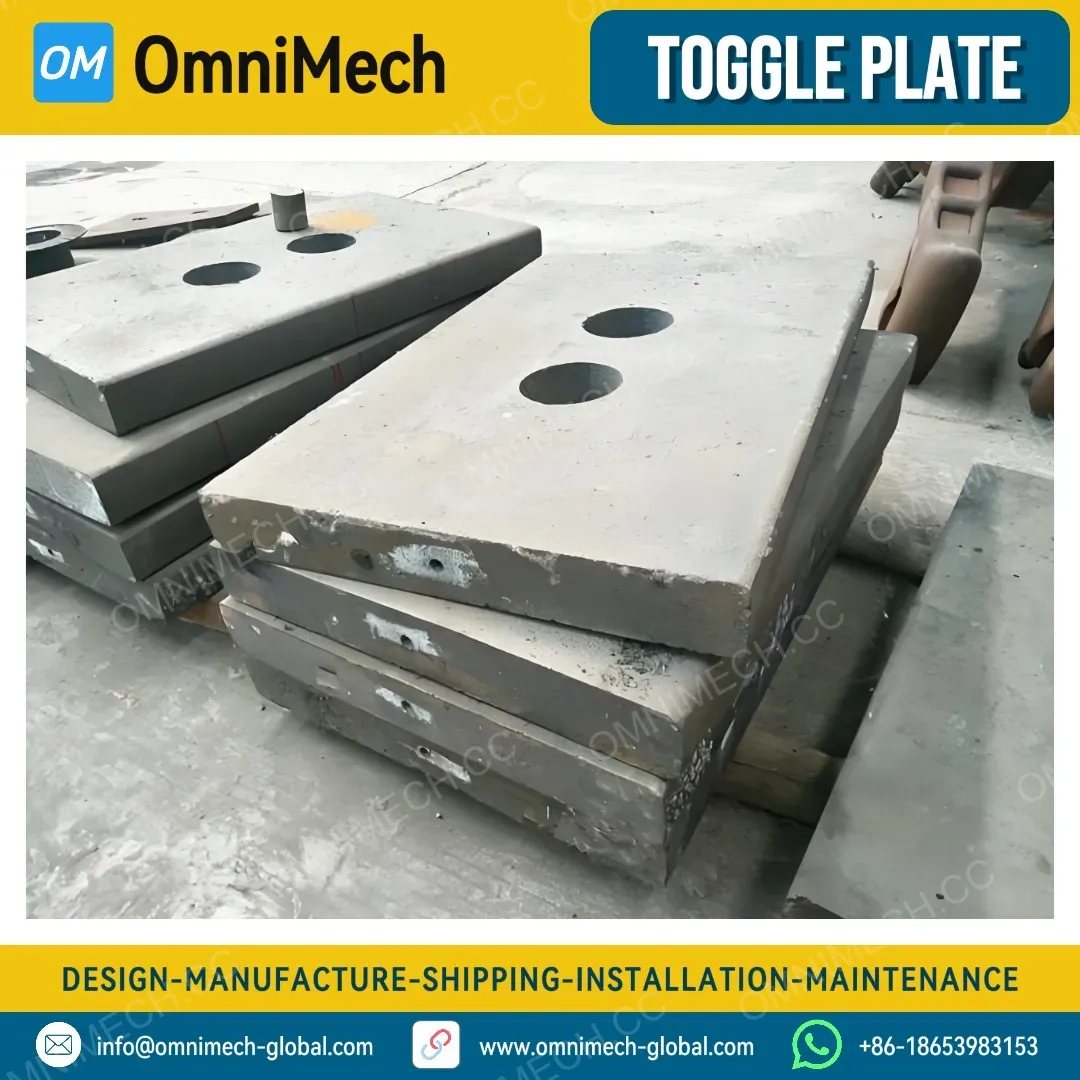

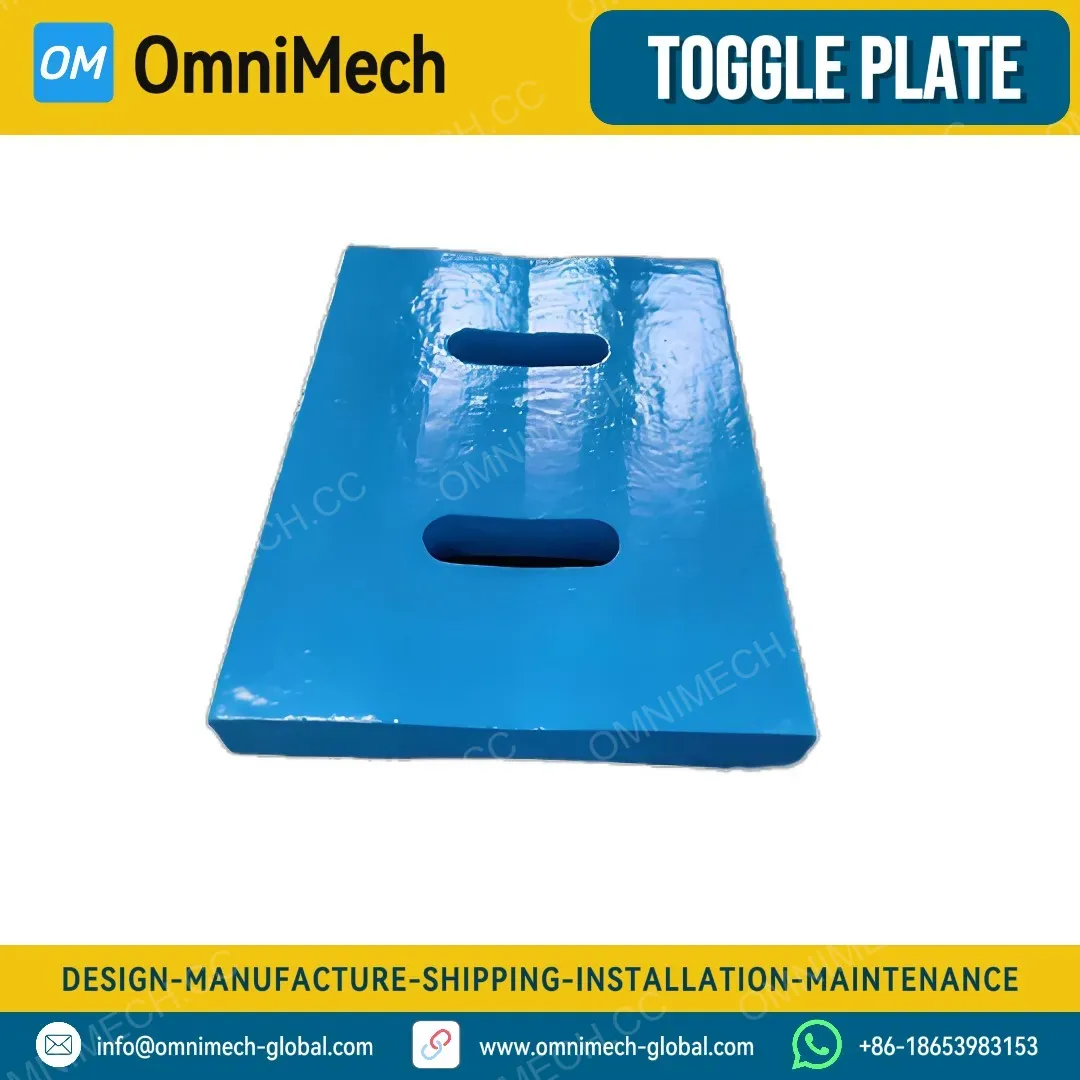

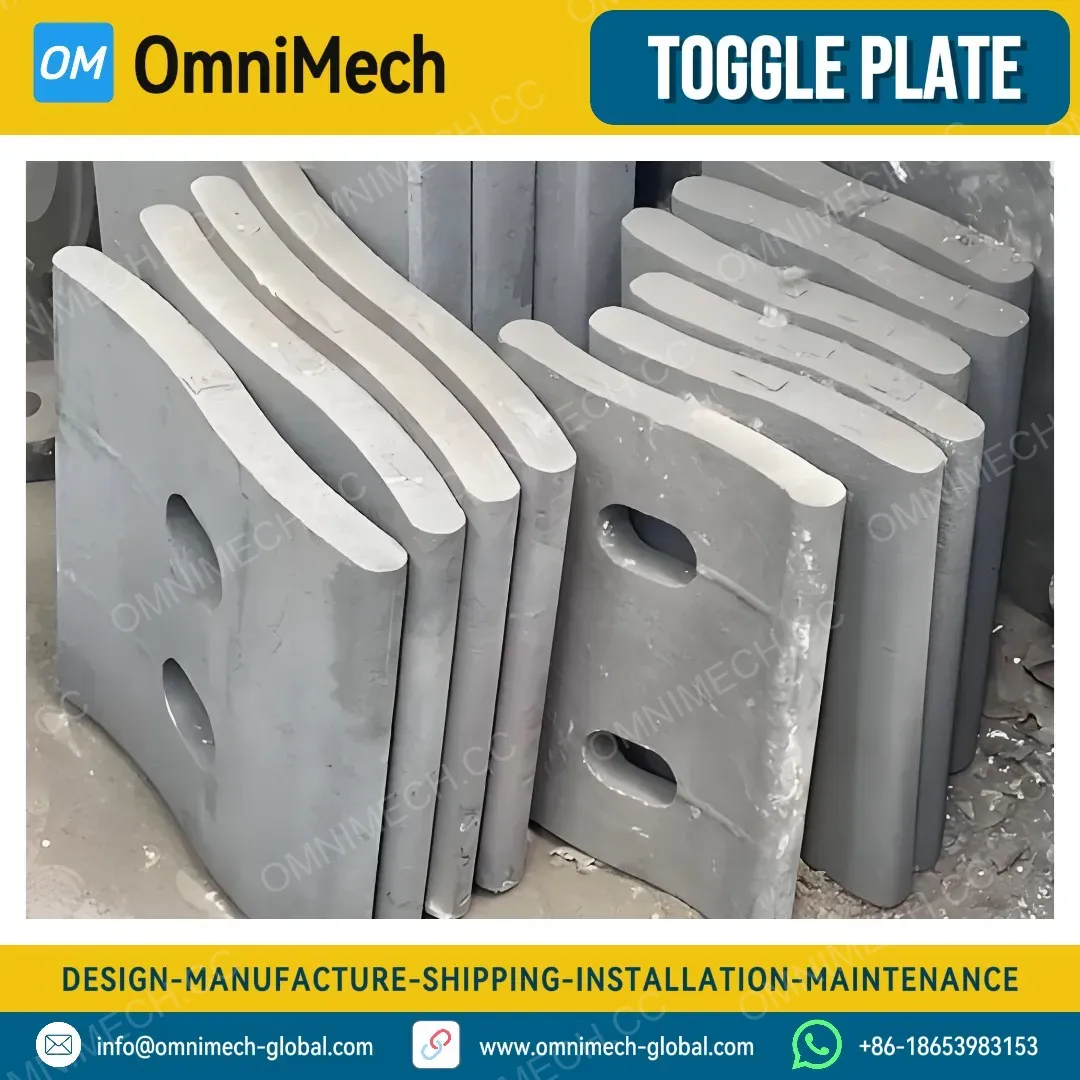

Jaw Plate / Toggle Plate for PE Series Jaw Crusher
High-quality manganese steel jaw plates designed for PE series jaw crushers, providing exceptional wear resistance.
Type
Jaw Crusher Parts
Category
Jaw Crusher Parts
Tags
Jaw Plate, Toggle Plate, PE Series
Key Features:
- Premium Mn13-Mn18Cr2 manganese steel casting
- Precision machining for perfect fit
- Optimized tooth profile for maximum crushing efficiency
- Available for all PE/PEX series models
- Custom designs available upon request
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Mn13 / Mn18Cr2 |
| Hardness | HRC 58-62 |
| Applicable Models | PE 150x250 - PE 2000x2100 |
| Compatible Brands | All major brands |
| Customization | Available against drawing/sample |
| Weight Range | 50 kg - 8000 kg |
| Service Life | 800-3500 hours |
| MOQ | 1 Set |
Product Description
Jaw plates are the critical wear components in jaw crushers. Our premium manganese steel jaw plates are engineered to withstand the toughest crushing applications, providing superior wear resistance and extended service life.
Design Features:
- Deep corrugation for better grip on material
- Optimal angle for efficient material compression
- Balanced stress distribution to prevent premature failure
Applications:
- Primary crushing in mines, quarries, and construction sites
- Ideal for hard rock, limestone, granite, and ore processing
