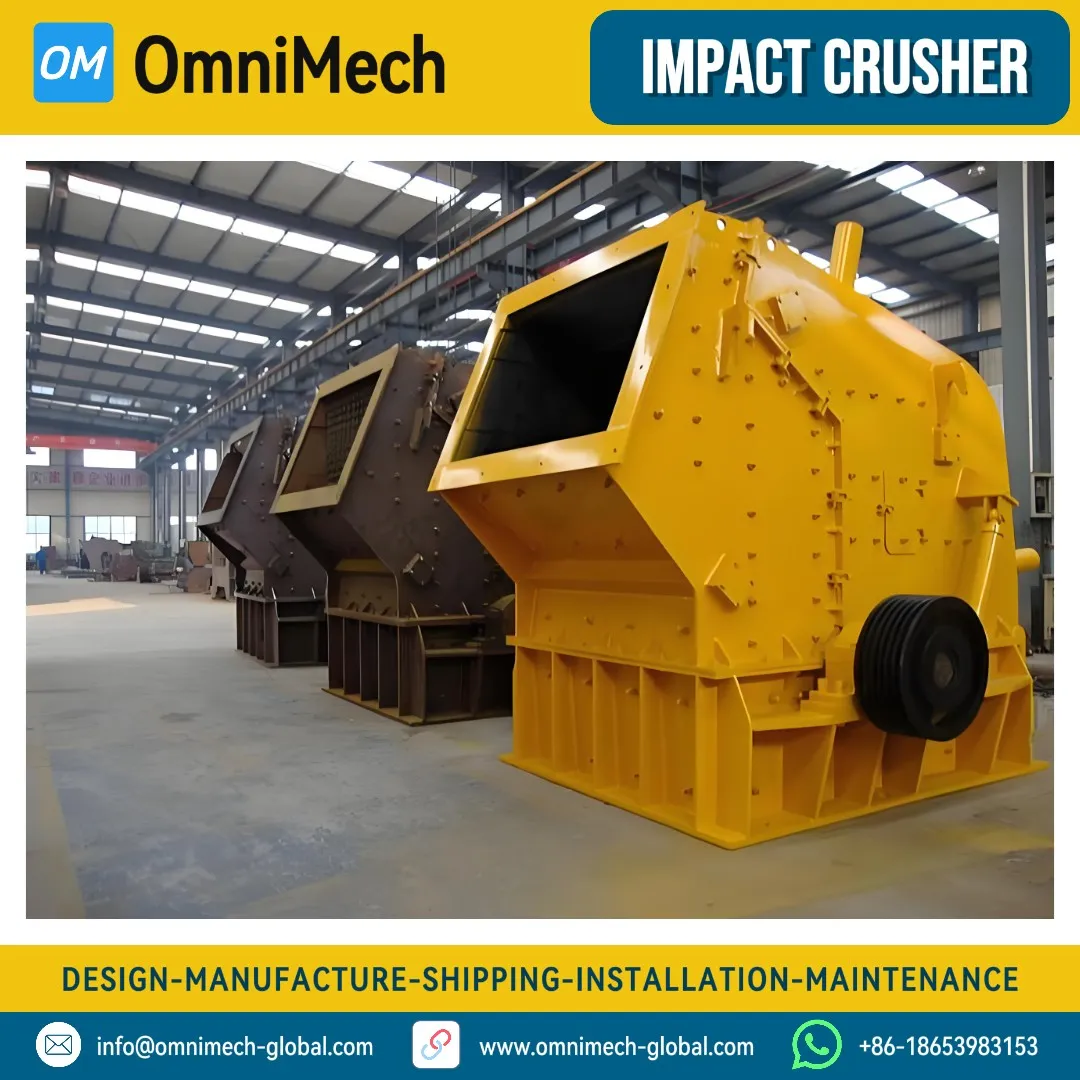

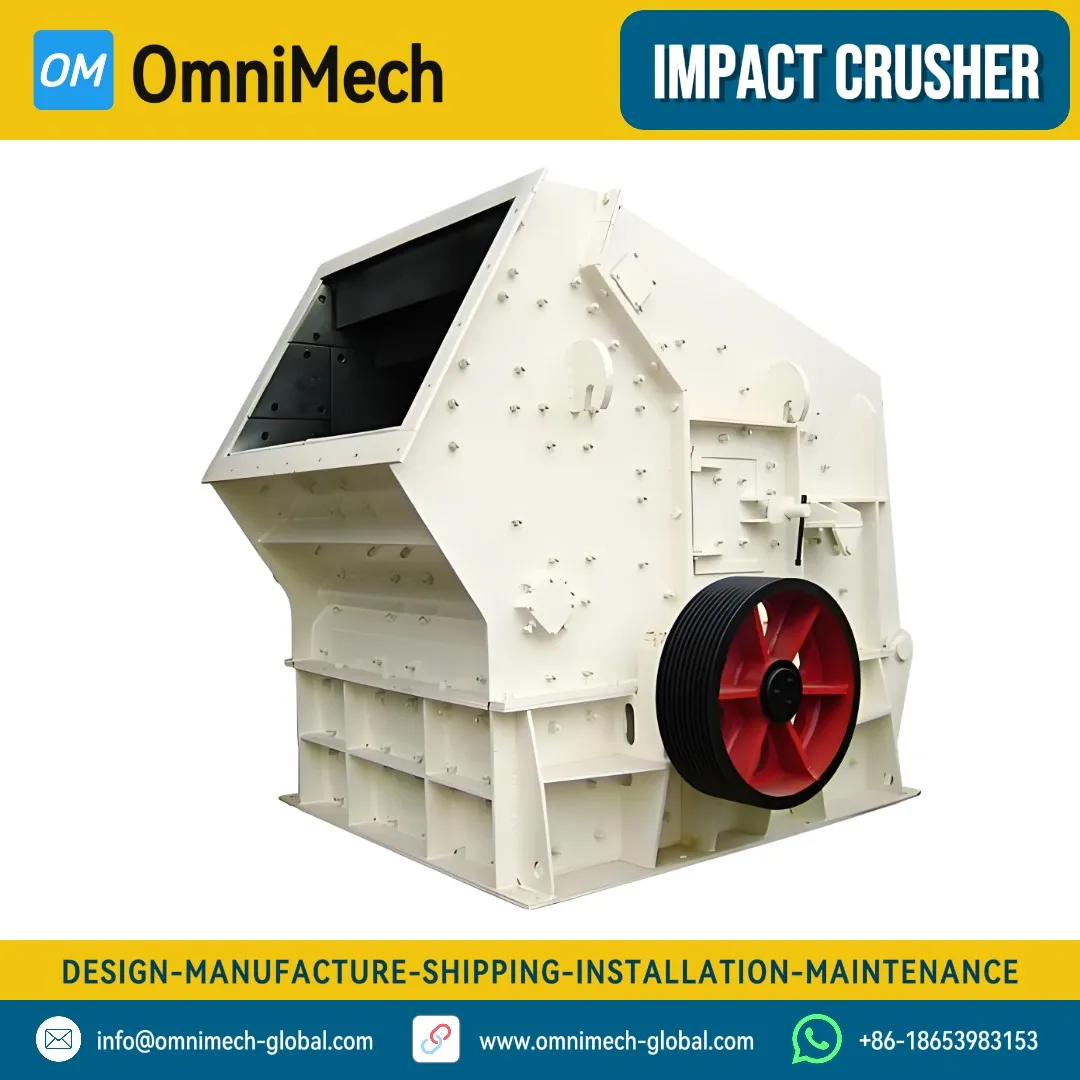

PF1315 Heavy-Duty Impact Crusher for Premium Cubical Aggregate Production

While cone crushers use compression, which can produce elongated or flaky particles when crushing laminated stone, the PF1315 impact crusher uses high-velocity impact. This shatters the material along its natural crystalline boundaries, resulting in a superior, cubical final product. Additionally, the PF1315 handles non-abrasive materials with a lower initial investment and lower cost per ton.

We standardize on premium high-chromium alloy steel (Cr26) for standard limestone and recycling applications, providing excellent wear resistance. For operations processing materials with higher impact strains or minor tramp metals, we offer medium-chrome options or custom bi-metal composite blow bars that combine high-wear resistance with superior impact toughness.

In a typical limestone quarry line operating 8 hours daily, a set of premium high-chrome blow bars generally lasts between 3 to 5 months. To maximize your return on investment, our blow bars are completely symmetrical and reversible, allowing you to flip them 180 degrees to utilize the fresh trailing edge before replacing them.

We strictly advise against using the standard PF1315 impact crusher for materials with a high silica content (above 5%), such as granite, quartzite, or river gravel. High silica levels cause extreme abrasive wear on the blow bars and internal liner plates, causing wear costs to spike rapidly. For abrasive hard rock applications, a cone crusher is a much more economical choice.

The integrated hydraulic frame opening package allows operators to split and hinge open the upper housing section in minutes using a simple hand pump or electronic power pack. This completely eliminates the need for labor-intensive manual unbolting and provides immediate, safe access for inspecting blow bars and changing wear plates.

The net base machine weight of the PF1315 is approximately 27,000 kg. Due to its wide body frame, it is typically shipped in a disassembled configuration (main frame base and upper housing separate) or secured inside a 40-foot open-top or flat-rack ocean container to comply with international shipping limitations.

We back our flagship PF1315 Impact Crusher with a comprehensive 12-month structural warranty, covering the reinforced main casing, cast steel rotor assembly, and main shaft against any manufacturing or material defects. High-wear parts like blow bars, impact plates, and side liners are excluded, but authentic replacements are heavily stocked for rapid international shipping.
